The LOCNEST System

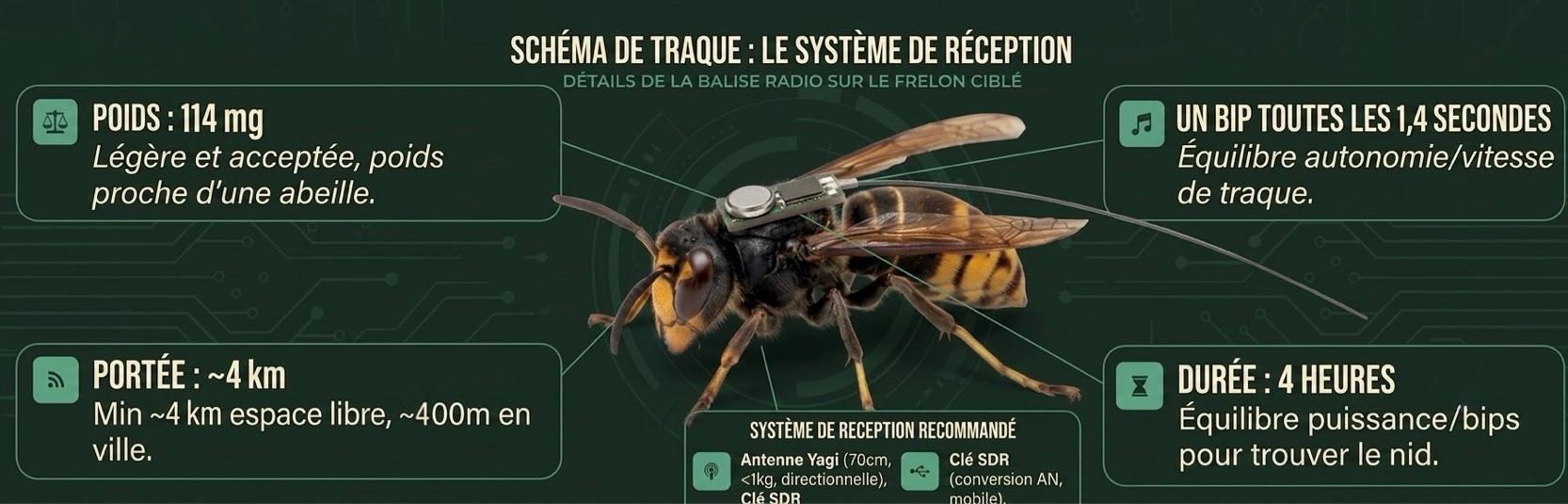

The tag

Light enough to be carried, with enough range to be tracked!

Weight: 0.13 grams

The first requirement is that the hornet accepts the beacon—that is, it returns to normal behavior as quickly as possible after being equipped. The lighter the beacon, the easier it is to tag smaller hornets, allowing us to start tracking earlier in the season without needing to selectively choose larger individuals. Note: 0.13 g is barely heavier than a honeybee.

Portée : 3 km

La portée mesurée est la portée en espace libre et avec le récepteur préconisé. /!\ l'humidité joue. En effet la portée est une combinaison de la puissance de l'émetteur, l'atténuation due à l'environnement et la sensibilité (+ gain) du récepteur. La portée estimée en ville est de 300 mètres environ. Les 3km annoncés sont une portée minimum pour chaque balise : les balises donnent souvent plus (environ 4km).

Durée d'émission : 4 heures

This duration is a compromise between transmission power, weight, and beacon frequency. The goal is to locate the nest quickly and efficiently! The duration could be increased, but at the cost of added weight.

One beep every 2 seconds

More frequent beeps drain the battery quickly; less frequent ones slow down the search.

The Receiver

A good receiver is: lightweight, sensitive, and directional!

7-element YAGI antenna

The antenna needs to be directional to precisely identify the signal source. Directionality also comes with beneficial gain, which improves receiver sensitivity and overall tracking range. The recommended antenna is 70 cm long and weighs under 1 kg—ideal for tracking.

SDR dongle

This is a USB stick that plugs into a phone. It converts the analog signal received by the antenna into a digital signal that can be interpreted by software. The recommended SDR key is a technological marvel: for its price, it offers exceptional quality—sensitivity, stability, and durability.

SDR Software

Software is required to interpret the received signal on a phone or PC. It provides both visual and audio representations of the signal at the target frequencies. Intuite has developed dedicated tracking software: SDR Pro Track.

Android Phone

Currently, only phones (and tablets or PCs) support the SDR key, which delivers the best results. The phone is naturally the most portable solution.

The Tracking Process

capture

The first step is to capture at least one hornet—using a trap or a fine-mesh net.

La capture est la première étape d'un protocole dans lequel chaque étape nécessite d'être réalisée avec soin. Pour beaucoup cela va consister à mettre un coup d'épuisette bien senti devant une ruche. Choisir le spécimen le plus gros possible. Certains préfèrent les piéger avec un appât. Cet appât à l'intérêt de nourrir le frelon. Pour l'instant il n'y a pas de recommandation particulière : nous n'avons pas comparé en profondeur les deux approches. Mais sachons qu'elles sont aujourd'hui toutes les deux en lice. Notez qu'il faut ensuite mettre le frelon asiatique dans le piège fourni avec le kit. Prévoir le nécessaire pour réaliser cette opération en suivant.

Equipping the tag

Next, the tracker equips the hornet with the transmitter, then releases it. ​

La phase d'équipement de la balise est cruciale. Le processus a été optimisé afin de proposer un protocole plus simple avec le kit Locnest, permettant au frelon de repartir rapidement sans être gêné par la balise.

  1. Dans un premier temps, introduisez le frelon capturé dans la cage fournie dans le kit. Refermez ensuite la cage progressivement afin de venir bloquer le frelon en douceur dans la partie haute. Il doit être positionné de façon perpendiculaire aux grilles de la cage pour vous laisser un accès dégagé à son thorax.
  2. Ensuite, déposez un point de colle sur le dos du frelon et placez-y la balise avec précision. Il est primordial de vérifier son bon positionnement : la balise ne doit en aucun cas gêner le battement des ailes ou l'envol du frelon par la suite.
  3. Enfin, patientez quelques instants pour attendre que la colle sèche complètement et que la fixation soit solide. Il ne vous reste plus qu'à ouvrir grand la cage pour laisser le frelon s'envoler et débuter le suivi.

Ground Tracking

Use one or more high-gain directional antennas to triangulate the signal.

Currently, tracking is a “hot or cold” game: pointing the receiver in the right direction gives a strong signal—both visually and audibly. You follow the hornet this way. However, a few things must be kept in mind:

  • While the range is around 1 km, that’s in open space. Obstacles like vegetation can reduce it.
  • Losing the signal can make it very difficult—or impossible—to relocate the hornet before it reaches its nest. So it’s essential to be organized: observe flight directions ahead of time, identify possible paths, and prepare for pursuit by mapping out roads, topography, and obstacles.
  • Hunting in teams will likely be crucial, especially early on.
  • The hornet handles the beacon very well and does not stay long at the nest (except at night).
  • Intuite is working on advanced triangulation solutions and using drones to assist in pursuit—but that’s still in development!

The Hornets


The first hornets emerge in April—these are the queens. The last colony members die off in December.

Know more

Asian Hornets (Vespa velutina)

Introduced to France in 2004, the Asian hornet is now widespread. It’s more aggressive, faster, and hungrier than its European cousin.

It can easily carry a bee weighing 0.1 g, so it has no trouble carrying the LOCNEST beacon at 0.12 g.

More détails : wikipédia

Oriental Hornet (Vespa orientalis)​

First seen near Marseille in the summer of 2021, this species is even more aggressive toward bees than the Asian hornet. Its nests are underground.

If spotted, report it immediately.

Link wikipédia

Japanese Hornet (Vespa mandarinia)

Known as the largest and most dangerous hornet, it arrived in the US from Japan in 2020. It hasn’t reached France yet, but we should be prepared.

Much larger than the Asian hornet, it can easily carry tracking beacons—essential for locating and eradicating its nests.

Wikipédia

Want to know more?

Contact me to chat by phone, video call, or in person.
